FaceDetection Activity

When to use the FaceDetection Activity

Use this activity when you want to detect faces in an image.

Figure 1

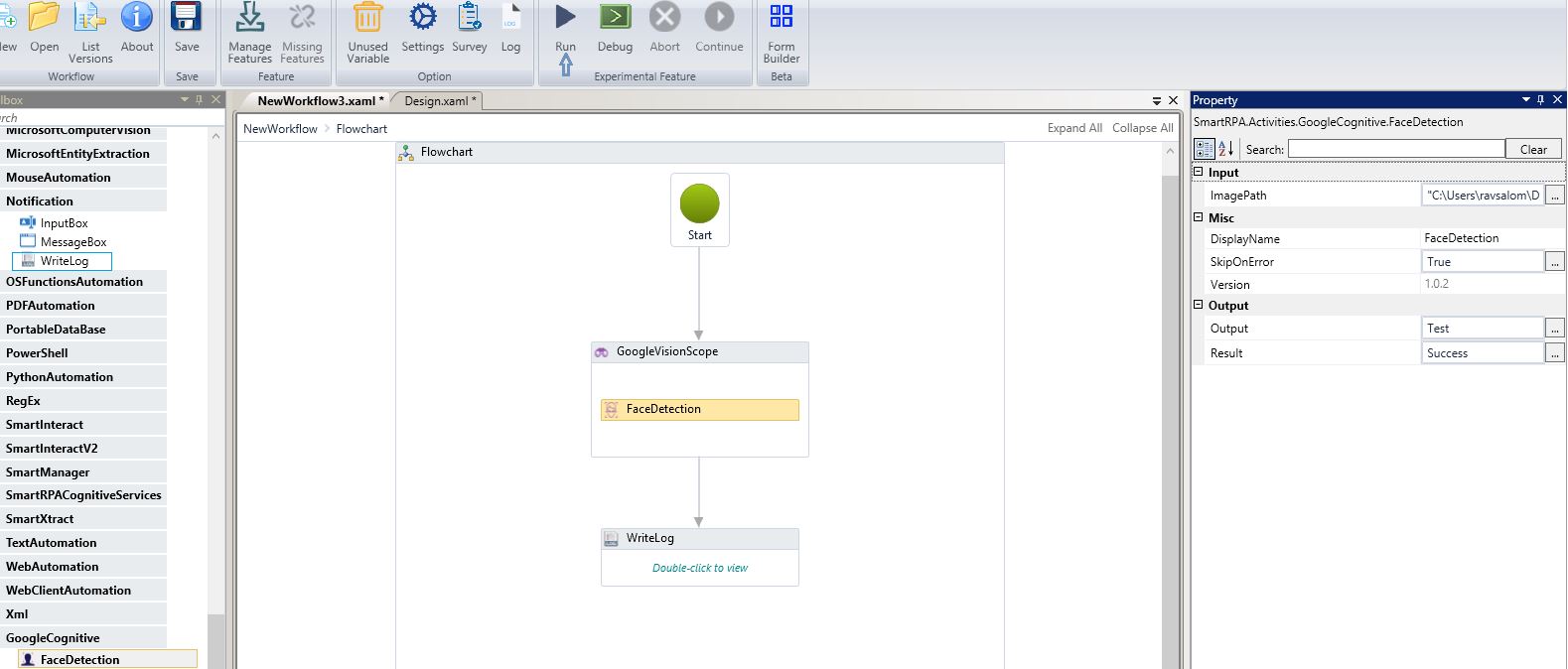

Drag and drop a FaceDetection activity from the GoogleCognitive package into the GoogleVisionScope drop zone. Refer Figure 3.

Fill all pertaining details in the Property window. Refer Figure 5.

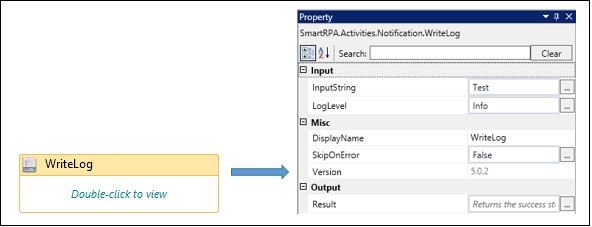

Drag and drop a write Log activity from the Notification package to the Workflow and provide the Input String and Log Level. This is to be followed for all other activities to view the output.

Figure 2

Execute.

Figure 3

The output returns the Bounding Positions along with confidence score.

Given Image

 Figure 4

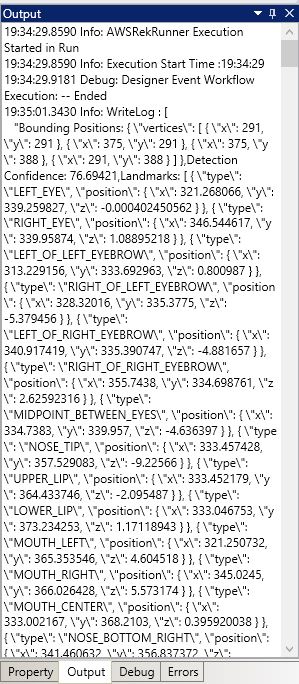

Output

Figure 4.1

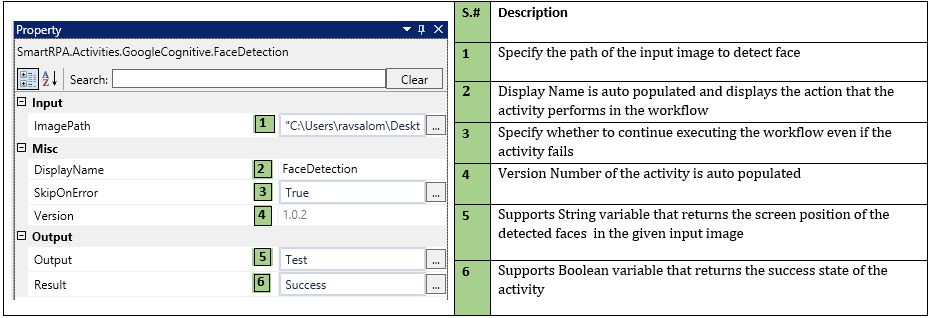

Technical Reference

Figure 5

Note: Skip on Error field accepts Boolean variable type.
