TextSplitting
When to use the TextSplitting activity
This activity is used to split and extract the characters/string from a given data.
Figure 1
Activity Name
|
|
TextSplitting
|
![a](/robility/sites/default/files/inline-images/tta.png)
|
Technical Reference

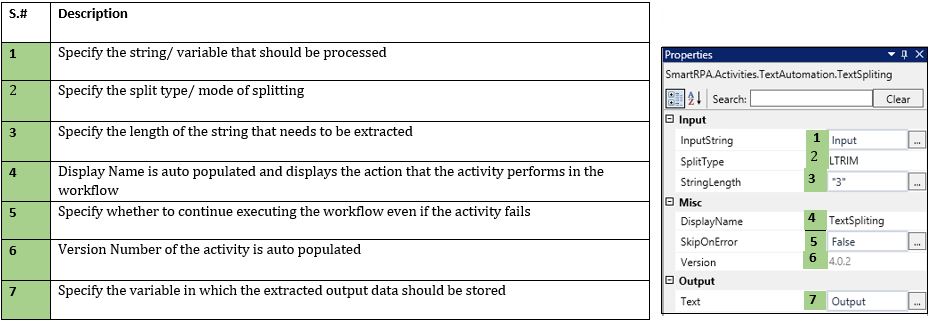

Figure 1.1
![S](/robility/sites/default/files/inline-images/SPLIT%20TEXT.JPG)
SplitType has multiple options to choose from, Choose LTRIM, RTRIM, MIDTRIM as required.
Activity: The TextSpliting activity helps you extract the required characters or string from a text parsed from a source string, The LTRIM, MIDTRIM and RTRIM options helps you to extract data from the start, end and mid of the input string.
Drag a TextSpliting activity and connect under the TextParsing activity.
- Double click on the activity and enter the required inputs such as InputString, SplitType and StringLength (Refer figure 13.)
- Declare a string variable with a preferred name and enter the same in the Text field in the property section (Refer figure 1.2 & 1.3).
Figure 1.2
![2](/robility/sites/default/files/inline-images/Split%201.JPG)

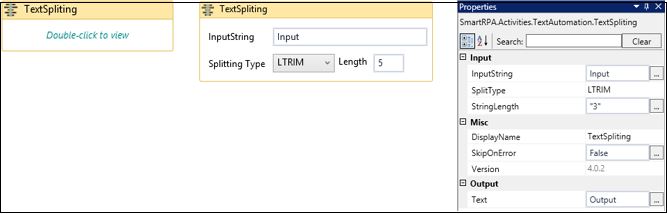

Figure 1.3
![3](/robility/sites/default/files/inline-images/Split%203.JPG)
