When to use the Get Transaction activity

When a transaction is to be fetched from a queue for further processing this activity can be used. A wizard guides you to complete the activity designing.

Figure 1

Activity Name	Picture
GetTransaction

Drag and drop the Get transaction into the flowchart, double click on the activity.

Figure 2

Click the Get Transaction option, a wizard screen pops up as shown below:

Figure 3

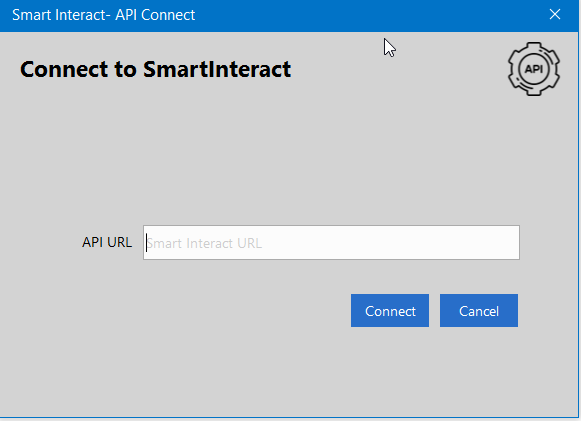

The unique API URL input shall be available in the project setup menu,

SmartInteractà ConfigurationàProject SetupàChoose the project from the dropdownàStep 10 API Key

Figure 4

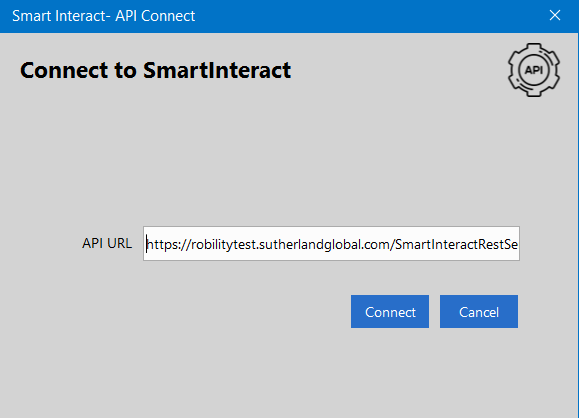

API key is environment specific, copy the appropriate key and paste it to the API URL field in the wizard.

Figure 5

Click on the connect option. a new screen loads to choose the preferred values.

Figure 6

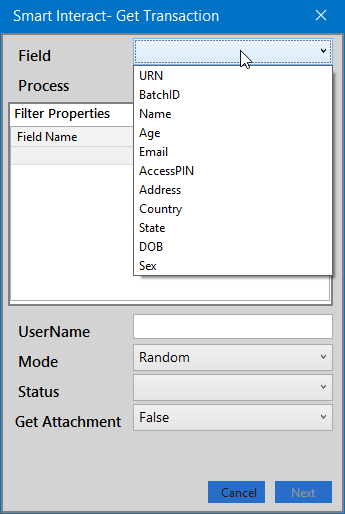

Choose an option from the Field drop down that determines the level in which the transaction needs to be processed.

Figure 7

From the process drop down choose the queue from which the transaction is to be fetched in the process.

Figure 8

The Filter properties option is used in scenarios where the transaction needs to be fetched based the field and its value. Click on add row option and choose the Field and supply the value.

Figure 9

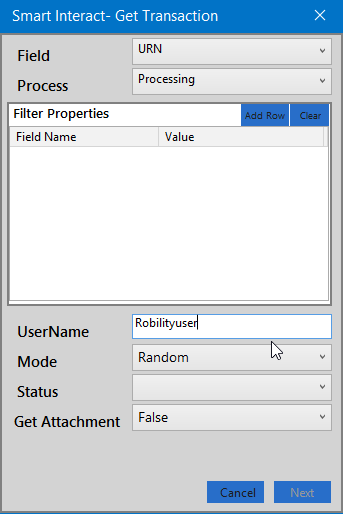

Provide the syntax (e.g. environment. username) which returns the name of the user that had fetched the transaction or hardcode the value in the username field.

Figure 10

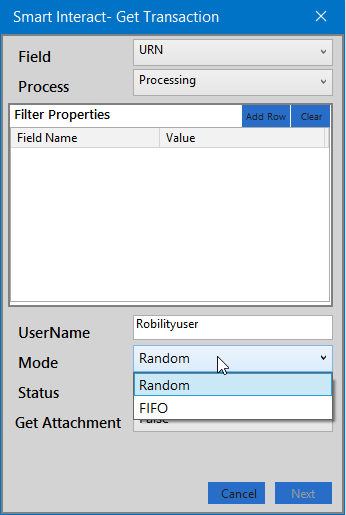

Set the mode in which the transactions are to be fetched, the drop down has 2 values

1. Random
2. FIFO

Figure 11

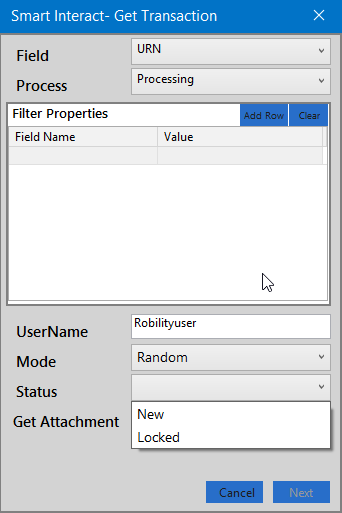

Select the status in which the transaction needs to be fetched from the previous queue, the drop down has 2 options

1. New

2. Locked

Figure 12

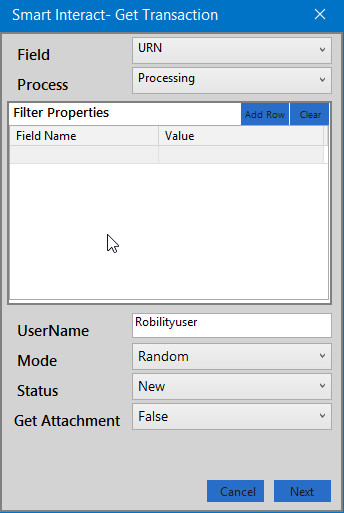

The next option is to choose if any attachment is to be downloaded in the transaction that is get, user to choose either of the Boolean based on the requirement.

Figure 13

Click next to proceed further.

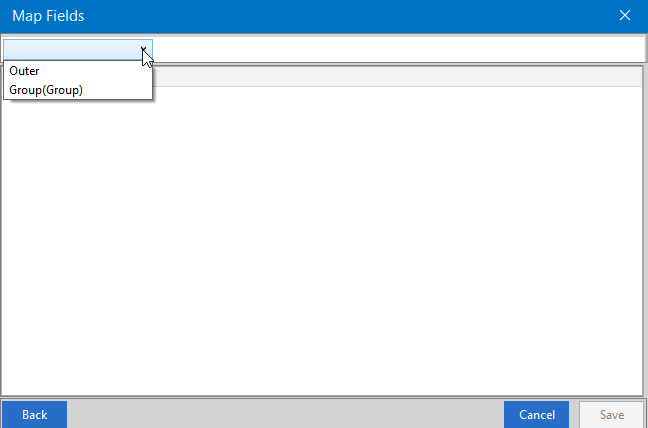

In the dropdown you will find options such as Outer and the group names that you had configured to view and confirm the values that will be fetched by executing the activity.

Figure 14

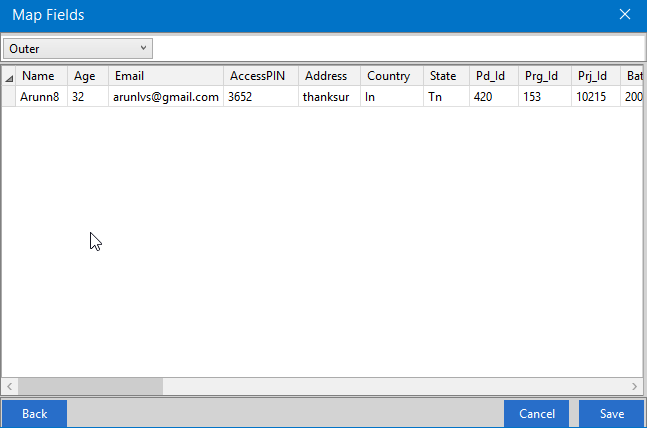

Choosing outer to view and validate the fields and its values which are configured apart from the ones that is available in the group. Click Save to complete the wizard.

Figure 15

Click Save to complete the wizard.

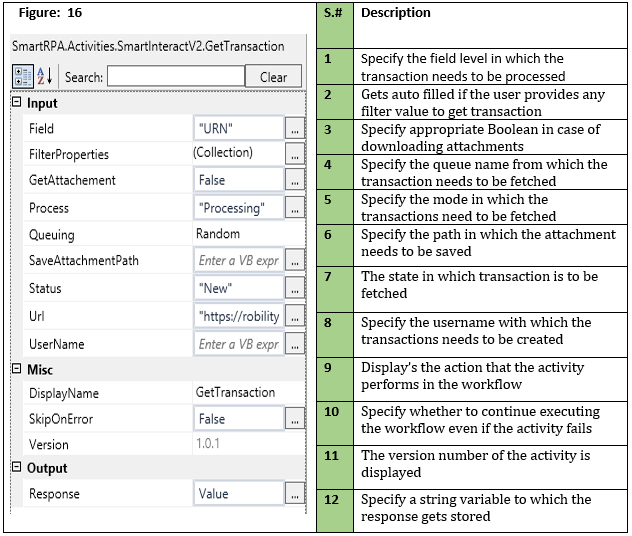

Technical Reference
