Prerequisites:

  1. Project ID – Refer Step 1 from previous section
  2. API Key Path – Refer Step 4 from previous section
  3. Location of your service, either US (United States) or EU (Europe). By default, it will be in US
  4. Your input document for processing. Supporting document formats – PDF, JSON, GIF, TIFF

Creating and Managing Google Document AI API

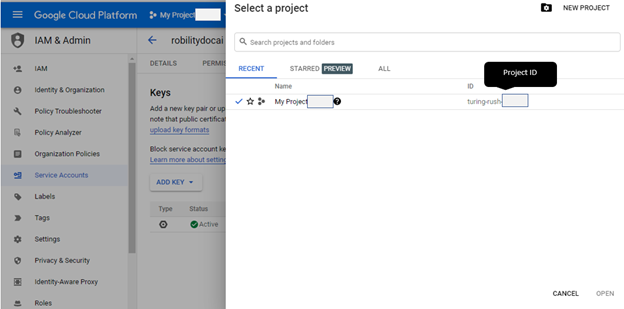

Step 1 – Create a Project inside your Google Cloud Platform, click here for documentation for creating and managing projects. Please use a valid Gmail Account for accessing into the portal.

Make sure to keep a note of your Project ID, which will be used in our activity.

Figure 1

Figure 1

Step 2 – You need a Google Cloud Service Account inside your project, click here for creating and managing service accounts.

Step 3 – Give the role as “Owner”.

Step 4 – Download the Service Account Key and save it in a local folder.

Follow the below link for detailed step by step procedure https://cloud.google.com/document-ai/docs/setup

Steps to execute the activity in the workflow:

  • Install GoogleDocumentAI package (version 1.0.0) from Manage Features

Figure 2

Figure 2

  • Drag and drop Form Parser activity from the newly installed package

Figure 3

fig 3

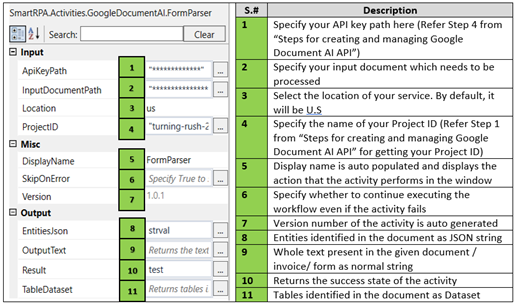

  • Fill the properties as follows , now execute the workflow

texh
