Scope activity will act as an authentication for all the activities in the package. It is a drop Zone where all other activities in the package will be dropped for them to function.

Please Note: AccountKey and AccountName will be provided at the time of registration.

Important Point: Do not share this unique key with anyone and this is not for public viewing as well. In

Drag and drop an AzureScope drop zone from the AzureBlob package on the canvas. Proceed to provide the AccountKey and AccountName in the pertaining fields. Body will be empty until an activity from the package is dropped into the scope.

Display Name will be auto populated for all activities.

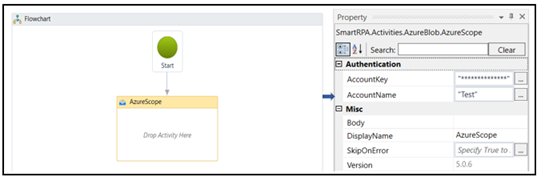

Figure 1

You are ready to drop all activities in the package onto the drop zone.

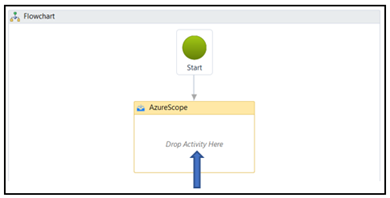

Figure 2

Body field will be updated once the respective activity is dropped into the drop zone and its corresponding property fields are filled.

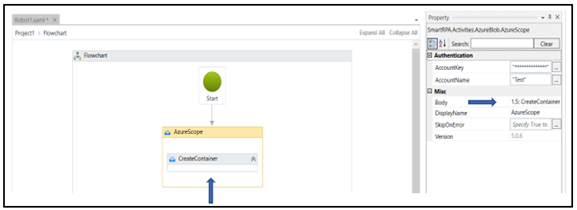

Figure 3
