This feature has been included to help the user to upgrade the activities in older versions of Web Automation to the newer version of Web Automation.

Note: The versions of Web Automation 4.0.1, 4.0.3, 5.0.0, 5.0.1, 5.2.2 can only be upgraded to the version 5.3.0 of Web Automation.

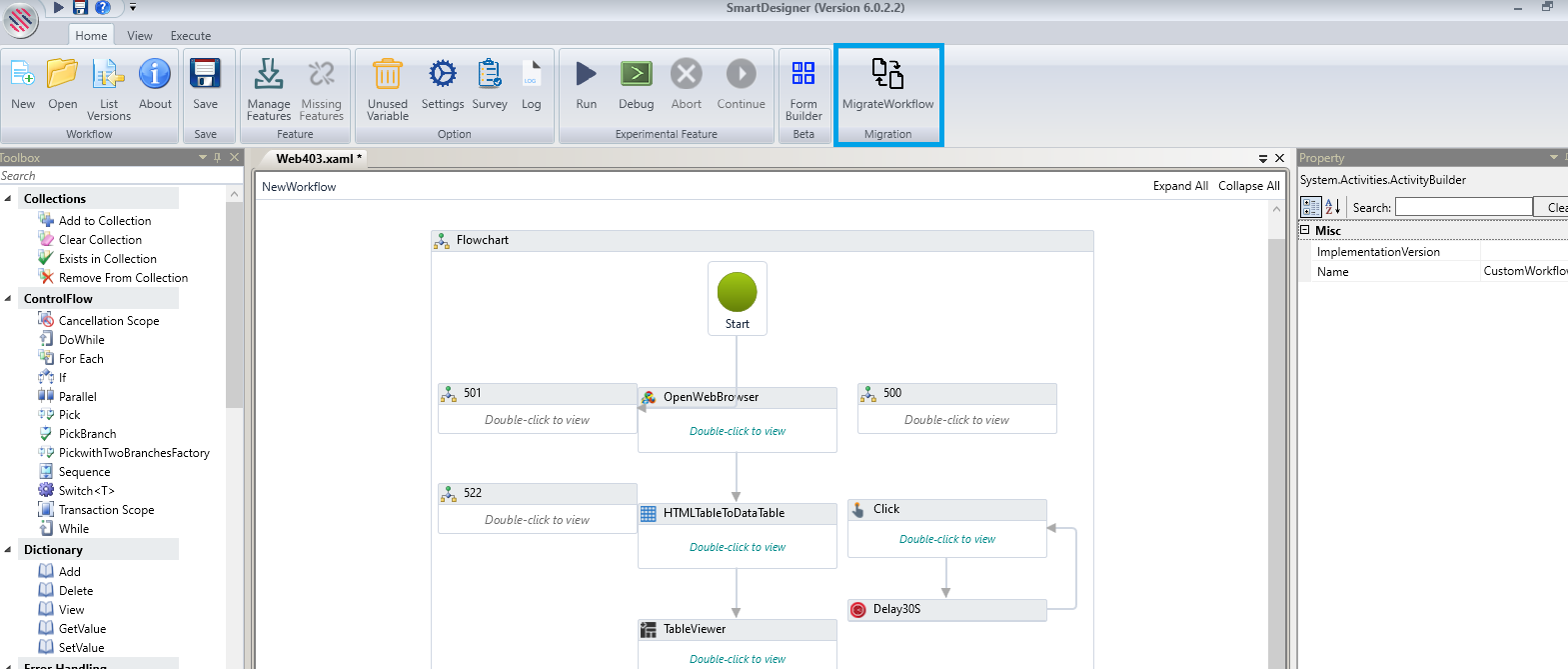

•  Select the Migration Workflow option on the top to upgrade the feature.


Figure 1

•  The Migrate Workflow tabular column appears on the screen.
•  The program and project data will be set by default, it will be the program and project of the workflow that has been opened.

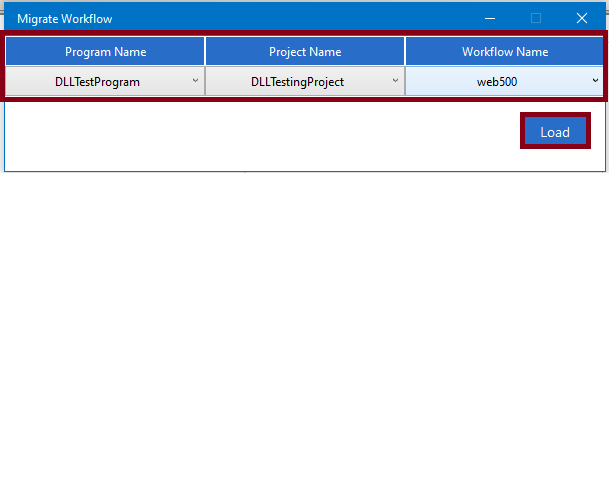

•  Select the workflow from the “Workflow Name” drop down and click Load.


                    Figure 2

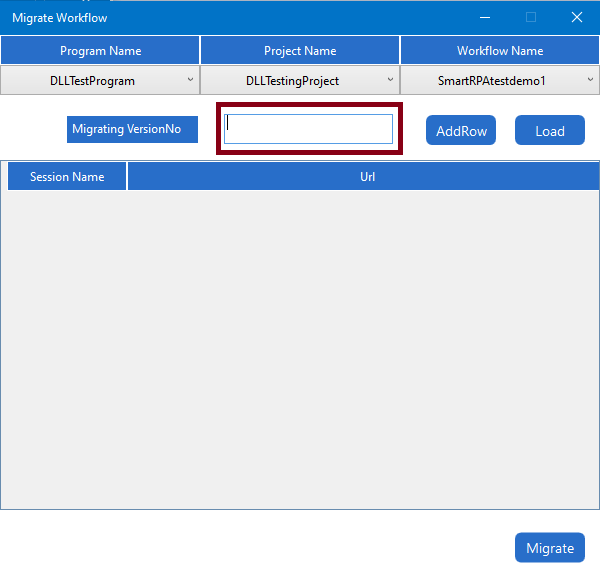

•  Enter the Migrating version number (Newer version 5.3.0) to which the activities needed to be upgraded.


                                   Figure 3

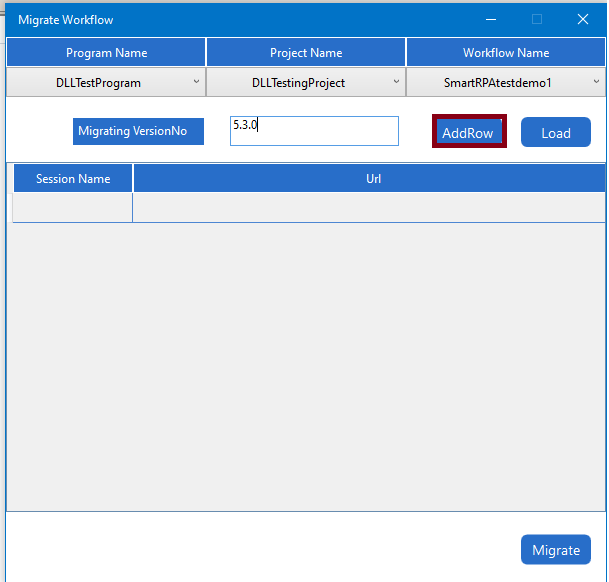

•  Clicking on Add row option populates a field to enter the session name and URL.


                             Figure 4

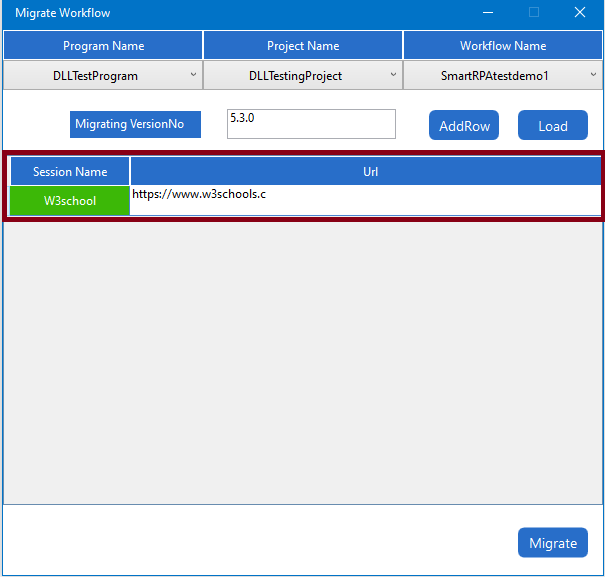

•  Enter the session name that has been used in the Web Automation activities and the URL in which the automation has been done.

                                Figure 5

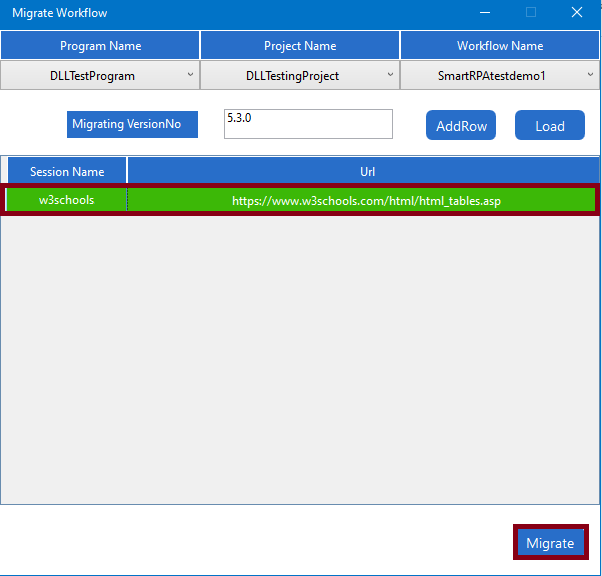

• Select the Session name and URL detail created and click Migrate option.


                       Figure 6

• The created session name and URL can be deleted by selecting the row and clicking delete option.

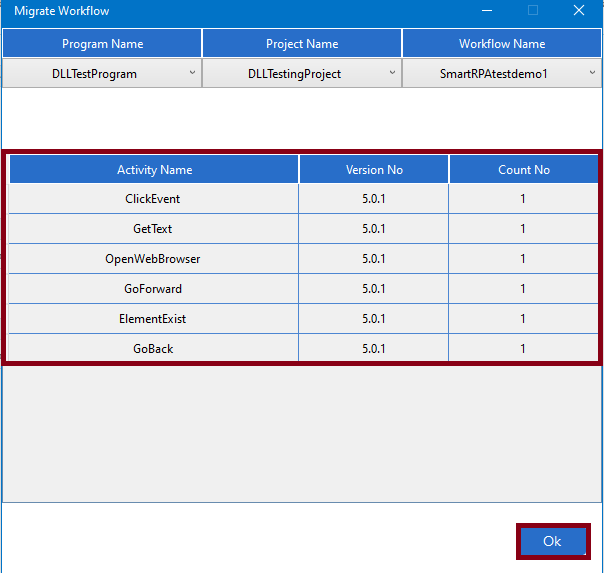

•  The activities get upgraded to the specified version (e.g., Latest version 5.3.0) and a summary is shown with the activities that had been upgraded and their respective versions.
•  Click OK.

          Figure 7
