GetAttributes

When to use the GetAttributes Activity

When you want to  get the attributes and  values of an element present in a web  page, use the GetAttributes activity.

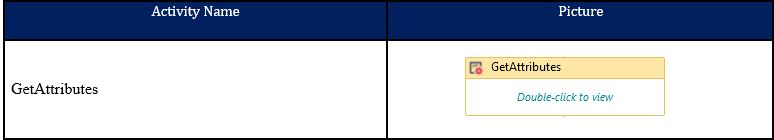

Figure 1

Double- click on the activity to access the following window. Click on Select Element to enable the SmartSpy. Select the Session and click on Attach.

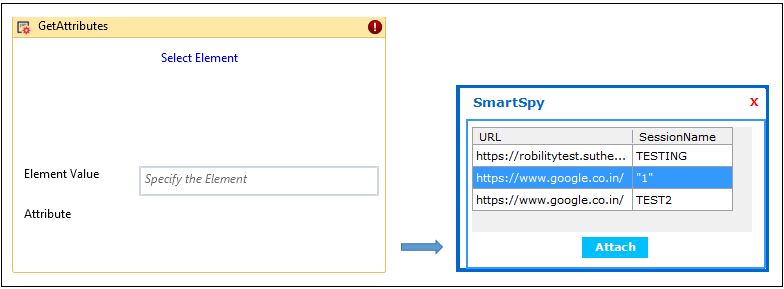

Figure 2

Press F9 to start spying and Press F8 to stop. Click on Export.

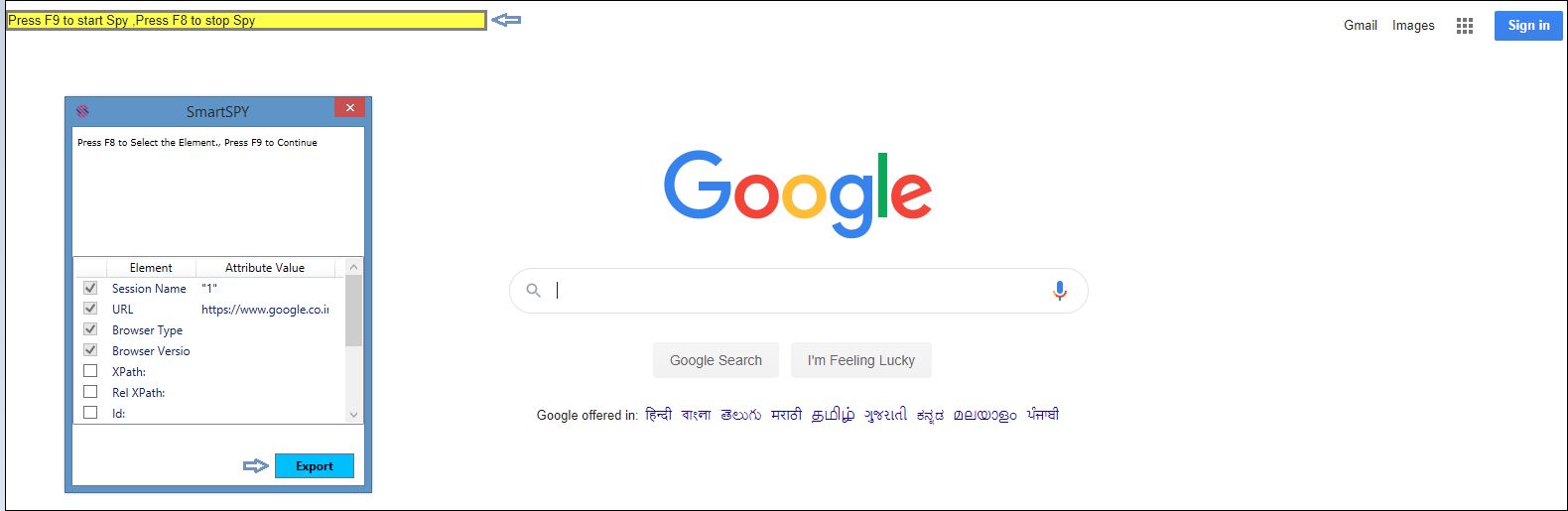

Figure 3

After exporting , most of the values get auto-filled in the respective fields present in the Property Window.

Fill in the other details (Refer Figure 5.)

The extracted Attribute Values will be listed in the dropdown.

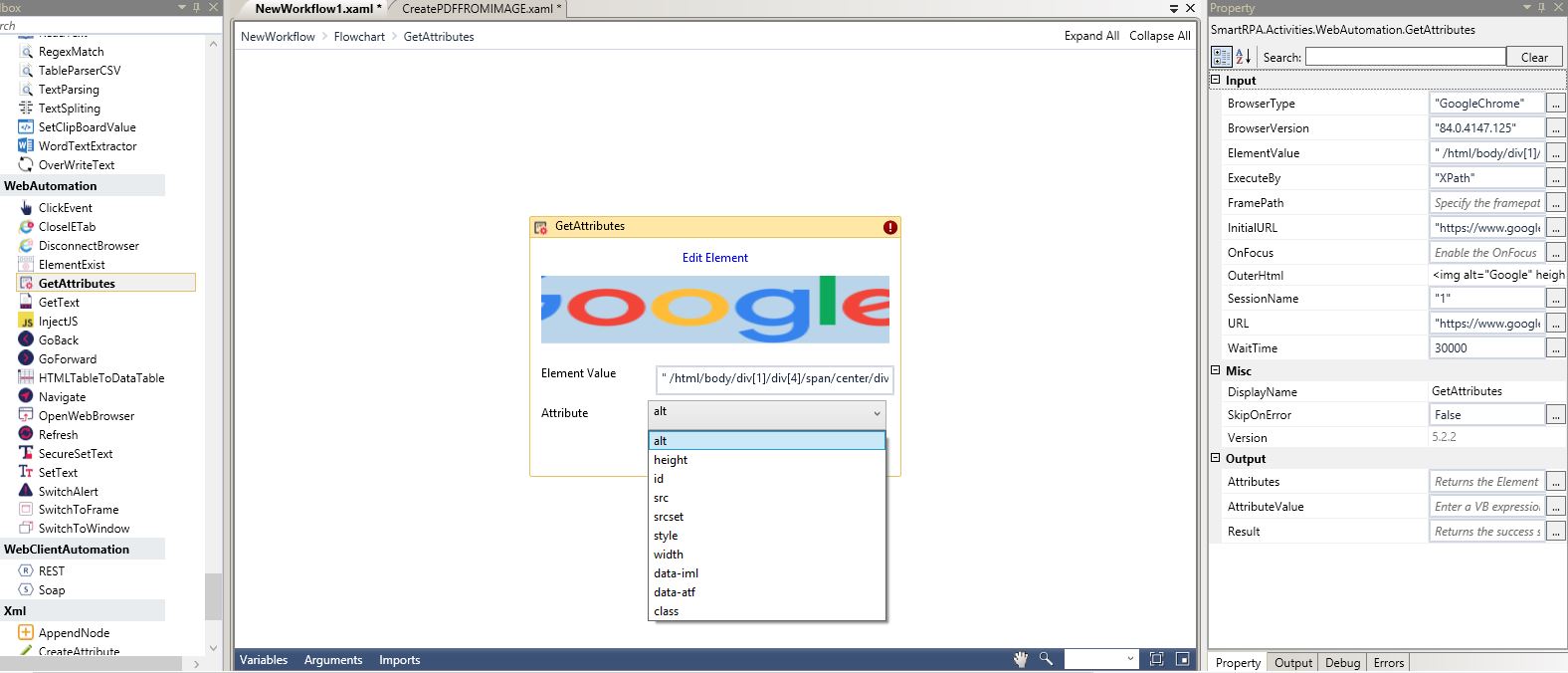

Figure 4

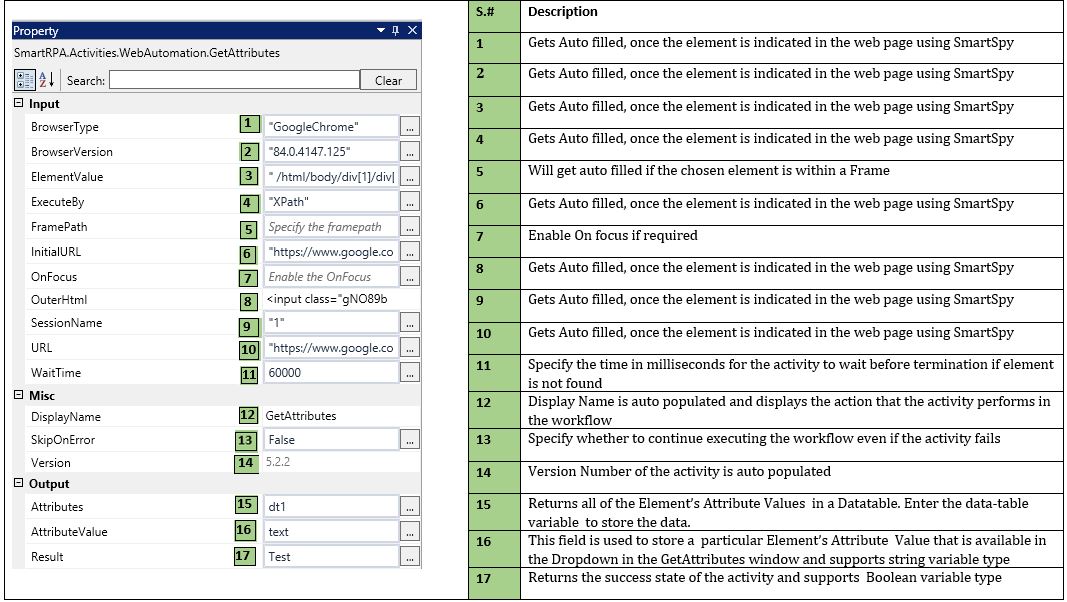

Figure 5

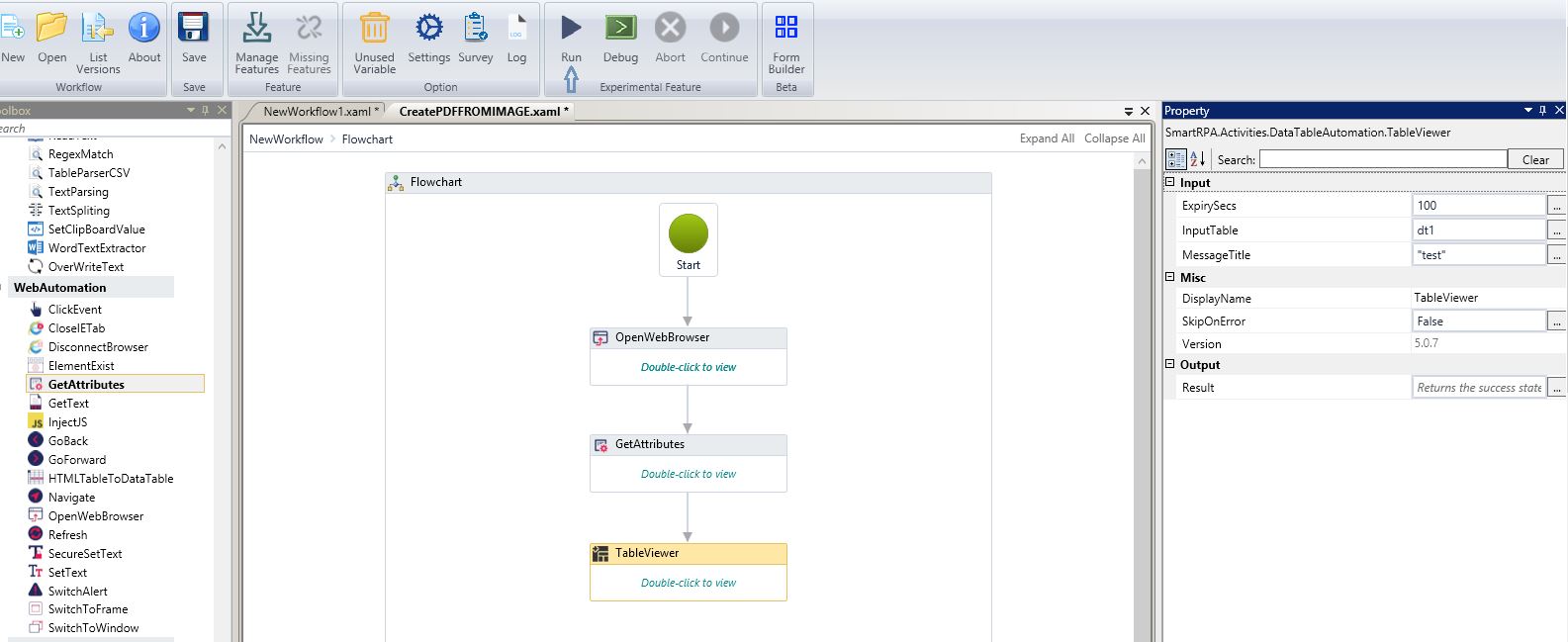

Use a Table Viewer to view the list of Values. Execute.

Figure 6

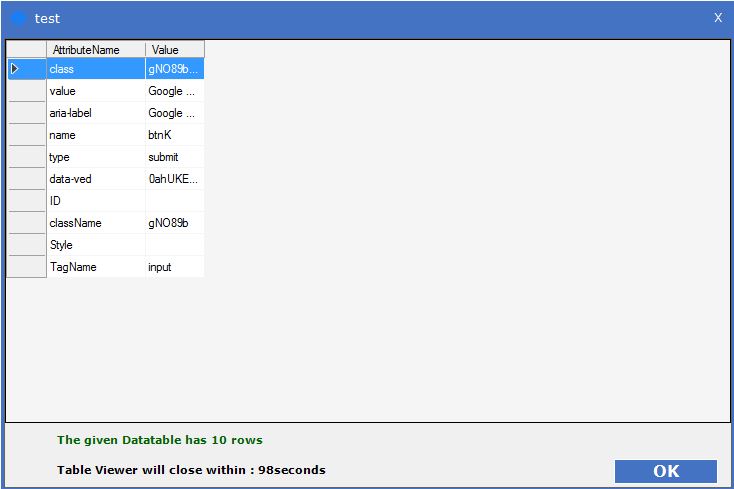

Figure 7

 The Attribute Name and its corresponding Value can be viewed as a data table.
